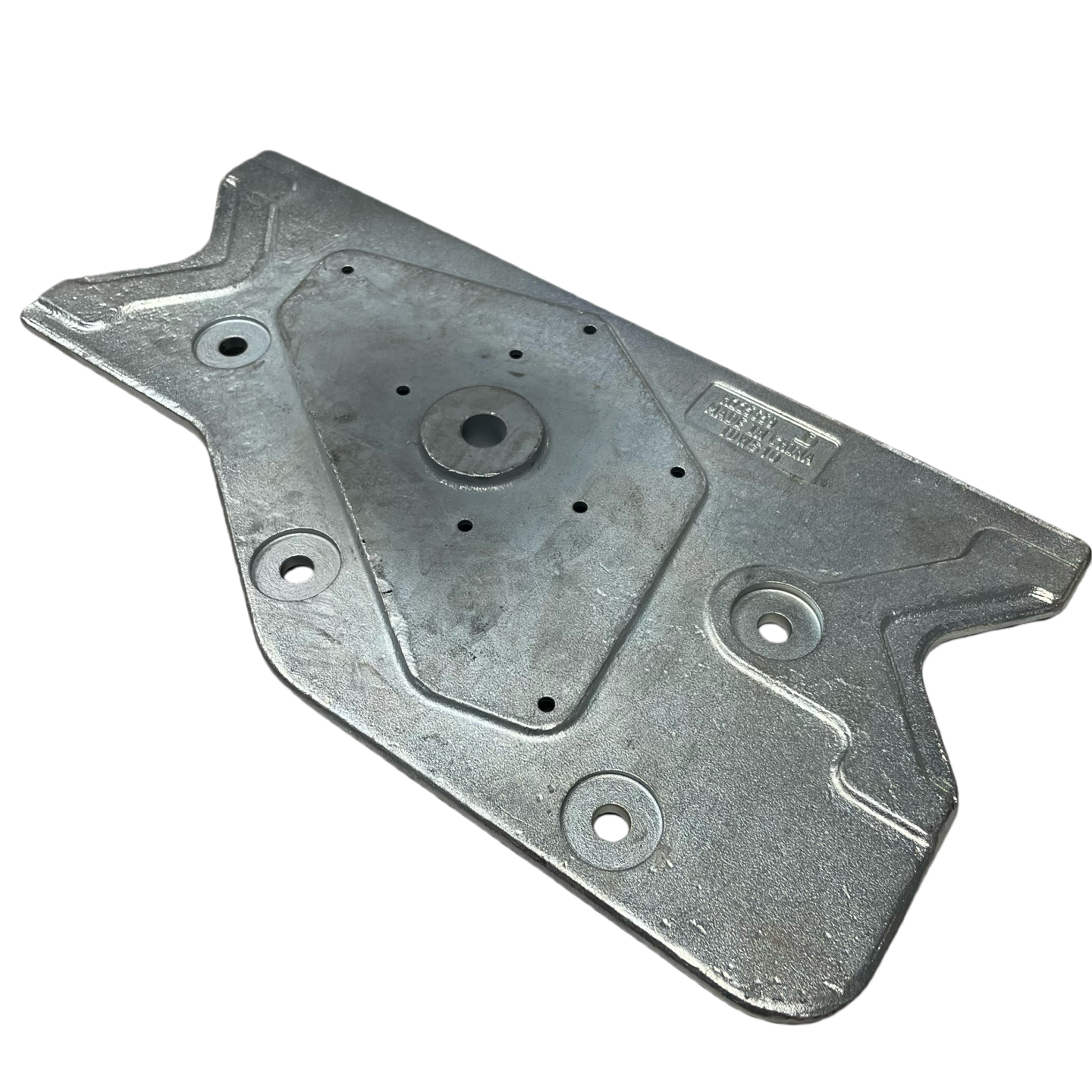

Automotive-Grade Precision-Forged Carbon Steel Battery Guard Plate For Transmission Systems
This product is a critical safety component engineered specifically for the demanding environment of modern vehicle underbodies. Designed as a first line of defense, it provides superior physical protection for sensitive battery systems integrated within or adjacent to a vehicle's transmission assembly. The guard plate is manufactured to strict automotive-grade standards, ensuring reliability, durability, and optimal performance in real-world driving conditions.
Core Features & Benefits:
-
Automotive-Grade Construction: Manufactured from certified, high-grade carbon steel and produced under IATF 16949 quality management systems, guaranteeing material consistency and performance traceability required for vehicle applications.
-
Precision Forging Advantage: The hot-forging process creates a part with a continuous, aligned grain structure, resulting in exceptional strength-to-weight ratio, impact absorption, and resistance to fatigue and cracking compared to stamped alternatives.
-
Targeted Transmission Area Protection: Specifically contoured and engineered to shield high-voltage or auxiliary battery packs located in the transmission tunnel or driveline area from road debris, stone strikes, moisture, and corrosion.
-
Engineered for Integration: Features precise dimensional accuracy and pre-defined mounting points (holes, brackets) for secure, rattle-free OEM-level installation without interfering with transmission operation, heat dissipation, or service accessibility.
-
Enhanced Durability & Finish: Treated with a robust, corrosion-resistant coating (e.g., zinc-phosphate & e-coat) to withstand exposure to road salts, chemicals, and extreme temperature cycles, ensuring long-term structural integrity.
Primary Applications:
-
Electric & Hybrid Vehicles (EVs/HEVs): Protecting traction battery modules or 12V auxiliary batteries positioned near the transmission or e-drive unit.
-
Modern Transmission Systems: Serving as a protective shield for battery components, wiring harnesses, or sensors associated with start-stop systems, mild-hybrid systems, or advanced automatic transmissions.
-
Commercial & Performance Vehicles: Providing heavy-duty underbody protection for fleet, off-road, or high-performance applications where transmission and battery integrity are paramount.
Product Specifications: Battery Guard Plate
| Parameter |
Specification |
| Product Name |
Automotive Battery Guard Plate |
| Material |
Automotive-Grade Carbon Steel |
| Manufacturing Process |
Precision Hot Forging |
| Standard Thickness |
2.5 - 4.0 mm |
| Surface Treatment |
Corrosion-Resistant Coating (Standard) |
| Primary Application |
Transmission System / EV Battery Protection |
| Key Feature |
High Impact Resistance & Precise Fit |
| Customization |
Supported (Design & Mounting) |
Frequently Asked Questions (FAQ)
1. Q: What is the main purpose of this guard plate?
A: Its primary purpose is to provide certified, heavy-duty physical protection for battery packs and related electrical components located in or near a vehicle's transmission area, guarding against impacts from road debris, gravel, and minor collisions.
2. Q: What does "Automotive-Grade" mean for this product?
A: "Automotive-Grade" signifies that the material selection, manufacturing process (precision forging), quality control, and performance testing all comply with the stringent standards and certification requirements (such as IATF 16949) of the global automotive industry, ensuring reliability for vehicle applications.
3. Q: Is this guard plate only for electric vehicles (EVs)?
A: No. While it is perfectly suited for protecting high-voltage battery packs in EVs and Hybrids, it is also designed for any modern vehicle where a battery (e.g., for start-stop systems, 48V mild-hybrid systems) is integrated near the transmission, including advanced internal combustion engine vehicles.
4. Q: Can it be customized to fit my specific vehicle model or prototype?
A: Yes. We offer full design and manufacturing customization. You can provide your CAD drawings or vehicle specifications, and we will engineer the guard plate to meet exact dimensional, mounting, and performance requirements for a perfect fit.
5. Q: How does it resist rust and corrosion?
A: The product undergoes a standard multi-stage anti-corrosion treatment, typically a zinc-phosphate coating followed by a baked paint finish. For harsher environments, we offer upgraded finishes like advanced powder coating or galvanizing.
6. Q: How is the product's quality assured?
A: Quality is built into our process, which is certified to the IATF 16949 automotive quality management standard. We conduct rigorous in-process inspections, final dimensional checks, and performance validation to ensure every part meets specifications.
7. Q: What is your standard lead time for production?
A: For standard or modified designs, the lead time is typically 6-8 weeks after order confirmation and final design approval. Lead times for new custom developments may vary and will be confirmed during the project quotation phase.
8. Q: Do you offer samples for testing and fitment validation?
A: Yes, we provide prototype or pre-production samples. Please contact our sales team with your specific requirements to arrange sample production, which may involve applicable tooling and sample fees.
