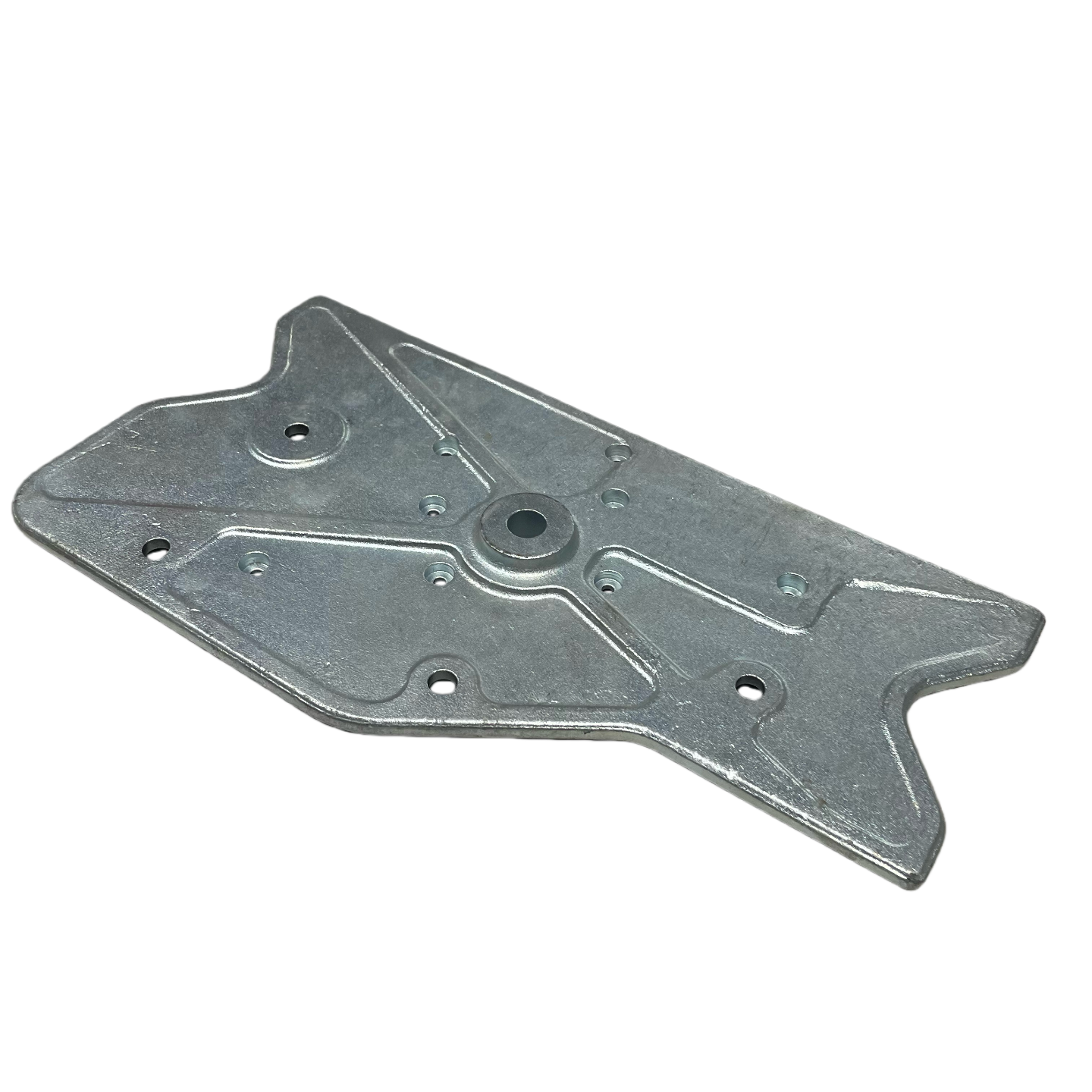

Precision Hot-Forged High-Strength Carbon Steel Transmission Battery Protection Panel
This product is an essential safety and structural component designed specifically for modern automotive transmission systems. Utilizing an advanced precision hot-forging process, it is manufactured from ultra-high-strength carbon steel, resulting in an optimal blend of exceptional durability, impact resistance, and lightweight design.
Core Features & Advantages:
- Superior Material & Process: Crafted from premium, automotive-grade high-carbon steel and formed through precision hot-forging. This ensures a dense, uniform grain structure that eliminates internal flaws, providing far greater strength and fatigue resistance compared to standard stamped or cast alternatives.
- Exceptional Mechanical Performance: Offers outstanding tensile strength and yield strength, capable of withstanding significant mechanical stress, road debris impact, and vibrational loads encountered in the vehicle undercarriage.
- Optimized Protection: Specifically engineered to shield the vehicle's battery pack (or other critical components) located near the transmission from physical damage, corrosion, and environmental hazards, thereby ensuring system integrity and safety.
- Precision Engineering: Features exact dimensional accuracy and consistent quality, guaranteeing a perfect fit and seamless integration with the designated transmission assembly, without interfering with existing components or maintenance access points.
- Rugged & Long-Lasting: The forged steel construction, often complemented by a corrosion-resistant coating or finish, provides excellent longevity and reliable performance under harsh operating conditions.
Primary Application:
This protection panel is ideally suited for use in various types of vehicles, including:
- Electric Vehicles (EVs) & Hybrid Electric Vehicles (HEVs): To protect high-voltage battery packs positioned adjacent to or within the transmission/drivetrain area.
- Advanced Automotive Transmission Systems: As a protective cover for integrated starter-generators, sensors, or wiring harnesses within modern automatic, dual-clutch, or CVT systems.
Product Specs: Transmission Battery Protection Panel
| Parameter |
Specification |
| Product Name |
Transmission Battery Protection Panel |
| Material |
High-Strength Carbon Steel |
| Process |
Precision Hot Forging |
| Surface Treatment |
Anti-Corrosion Coating (Standard) |
| Thickness |
3.0 mm |
| Tensile Strength |
≥ 850 MPa |
| Key Feature |
Designed for EV/HEV Battery & Transmission Protection |
| Customization |
Available (Dimensions, Mounting Points) |
Frequently Asked Questions (FAQ)
1. Q: What is the primary function of this protection panel?
A: Its primary function is to provide robust physical protection for the vehicle's battery pack (or other critical components) located within or near the transmission/drivetrain area against impacts from road debris, stones, and minor collisions.
2. Q: Why choose hot-forged steel over stamped or aluminum panels?
A: Hot forging creates a superior, continuous grain flow that follows the part's shape, resulting in significantly higher strength, toughness, and fatigue resistance compared to stamped parts. It offers better impact resistance than aluminum at a competitive weight-to-strength ratio, making it ideal for critical underbody protection.
3. Q: Is this product suitable for both Electric Vehicles (EVs) and traditional vehicles?
A: Yes. It is specifically designed for modern automotive systems. It is highly suitable for EVs and Hybrids to protect high-voltage battery packs. It can also be used in advanced traditional vehicles to protect sensors, wiring, or components integrated into the transmission system.
4. Q: Can you customize the panel for our specific vehicle model or design?
A: Absolutely. We specialize in customization. We can engineer and manufacture the panel to your exact CAD drawings, including specific dimensions, curvature, bolt-hole patterns, and clearances to ensure a perfect OEM or retrofit fit.
5. Q: What surface treatment options are available for corrosion resistance?
A: Our standard treatment is a high-quality zinc phosphate coating with electrostatic paint. For extreme environments, we offer upgraded options such as heavy-duty powder coating or hot-dip galvanizing.
6. Q: What are your quality control and certification standards?
A: Our manufacturing process is certified to the IATF 16949:2016 automotive quality management standard. We implement strict process controls, dimensional checks, and material traceability throughout production.
7. Q: What is the typical lead time for an order?
A: Lead time depends on order quantity and design complexity. For standard designs, typical lead times range from 6-8 weeks. For new custom projects, please contact us for a detailed timeline based on the development cycle.
8. Q: Do you provide samples for testing and validation?
A: Yes, we can provide prototype or pre-production samples for your engineering validation and testing purposes. Please contact our sales team to discuss your sample requirements.
